Helical Baffles & Tube Bundle Assembly

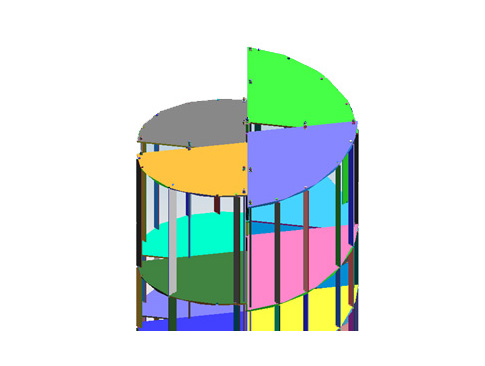

Automation of 3D models and 2D drawings of Helical Baffles

Inputs: 60 parameters
Outputs:

Automatic generation of 3D Model
Automatic generation of BOM, Tables and Drafting Sheet

Savings

Time taken before implementation:

Time taken after implementation:

Successfully Implemented in over many live jobs to date

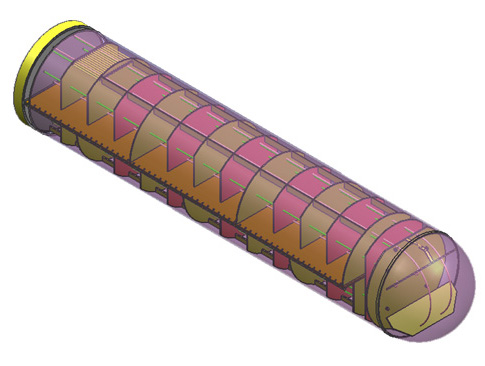

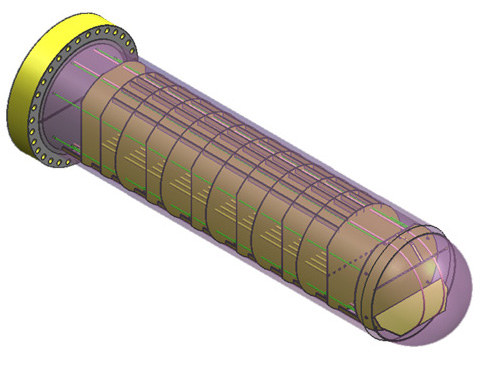

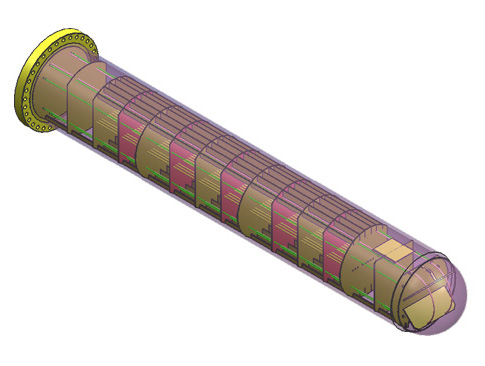

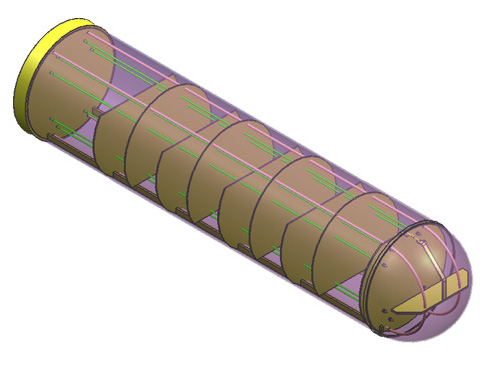

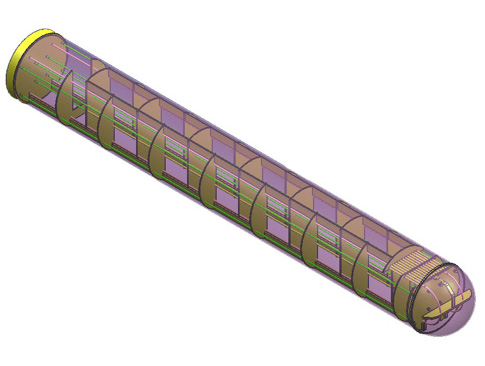

Automation of 3D models and 2D drawings of Tubebundle Assembly

• Benefits:
– Inputs: Just 75 design parameters
– Outputs

Automatic creation of 3D models
Automatic creation of manufacturing drawings (2 nos.)
Automatic creation of BOM

• Time taken before KBE: 1 – 2 man-months
• Time taken after implementation: 1 – 2 man-days
• Successfully Implemented in over many live jobs to date
