Stream Drum

Benefits:
Inputs: Just 50 design parameters
Outputs

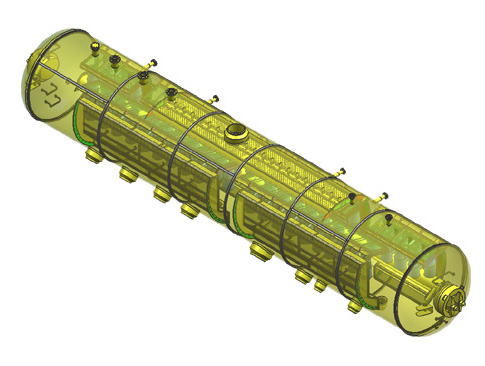

• Automatic creation of 3D models
• Automatic creation of manufacturing drawings (21 nos.)
• Automatic creation of General Assembly drawing
• Automatic creation of Enquiry Sketch (GA Sketch)
• Automatic creation of BOM

Time taken before KBE: 3 – 4 man-months
Time taken after implementation: 7 – 9 man-days
Successfully Implemented in over many live jobs to date
