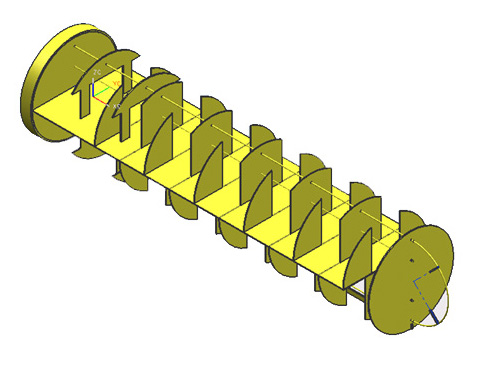

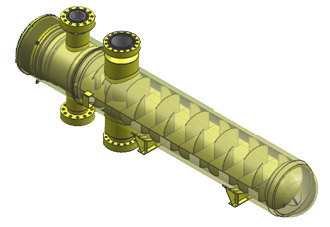

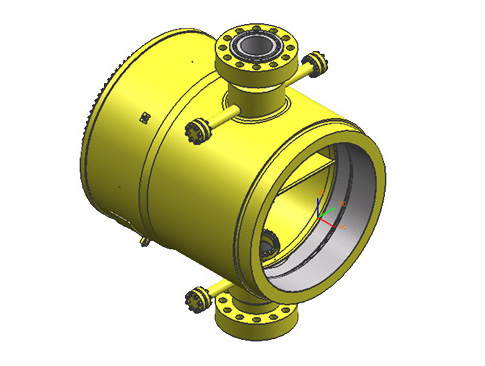

Automation of 3D models and 2D drawings of HH Type Heat Exchanger
Benefits:
Inputs: Just 30 design parameters
Outputs
- Automatic creation of 3D models
- Automatic creation of manufacturing drawings (8 nos.)
- Automatic creation of General Assembly drawing
- Automatic creation of Enquiry Sketch (GA Sketch)
- Automatic creation of BOM
Time taken before KBE: 1 – 2 man-months
Time taken after implementation: 3 – 4 man-days
Successfully Implemented in over many live jobs to date

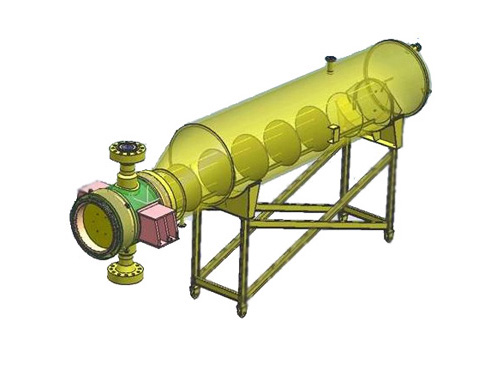

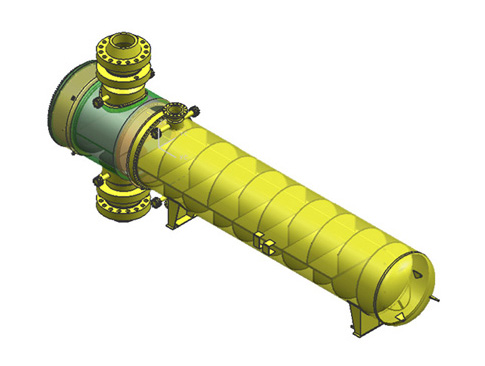

Automation of 3D models and 2D drawings of HLType Heat Exchanger
Benefits:
Inputs: From User Interface
Outputs
- Automatic creation of 3D models with multiple configurations
- Automatic creation of manufacturing drawings (7 nos.)
- Automatic creation of General Assembly drawing
- Automatic creation of Enquiry Sketch (GA Sketch)
- Automatic creation of BOM
Time taken before KBE: 1 man-month
Time taken after implementation: 3 – 4 man-days
Successfully Implemented in over many live jobs to date
